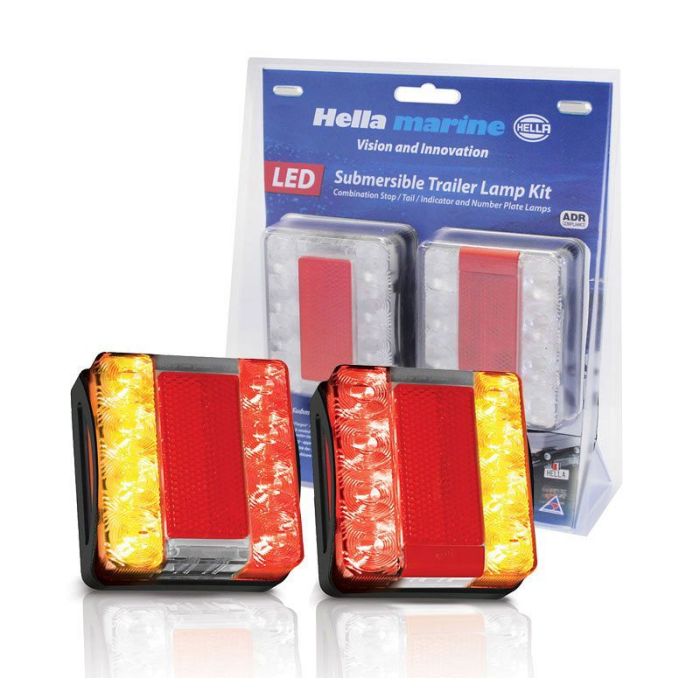

Hella 2395-TP Square Compact LED Combination Trailer Lamp Kit

Square Compact LED Combination Lamp Kit

Series: 2395 Trailer

Advanced Hella marine LED trailer lamps are the highly visible, maintenance free solution for reliable and safe boat trailer lighting.

Submersible 2394 and 2395 series lamps feature a modern clear lens with black mounting base.
The full combination of functions are offered including LED stop, rear position and rear indicator lamps, number plate illumination plus and an integrated 18cm² red retro reflector.

Low power consumption and long life equates to economical running costs. The mounting base has multiple fixing points and allows time saving and convenient installations onto most boat trailers. Each lamp is completely sealed against dust and moisture ingress. Optic appears clear until illuminated.

Kit Contains:

1 x 2394 Rear Position / Stop / Indicator
1 x 2395 Rear Position / Stop / Indicator / Number Plate

80mm wide X 96mm high LED Stop / Rear Position / Rear Direction Indicator Lamp.
Installation via mounting bracket and clicking in the lamp.

ADR approved.

Rearlight - 12/24V - Bolted - ADR/GGVS - Lens Colour: transparent - Cable: 6000mm - Rear - Kit

Features

• Width: 96mm - Height: 80mm - Lamp Type: LED - with reflector
• Light functions: 4 - with stop light (LED)/with position light (LED)/with indicator (LED)/with number plate light (LED)
• Registration Type: ADR/GGVS - Prot.type (IP Code): IP6K7/IP6K9K
• Diffusing Lens Material: Polyamid 12 - Lens Colour: transparent
• Mounting Type: Bolted - Fastening Type: for horizontal fastening/for vertical fastening

Specifications

• Part number: 2395-TP
• Hella number: 2VB 980 720-811
• Barcode (EAN): 9416325214977
• Brand: Hella
• Fitting Position: Rear
• Mounting Type: Bolted
• Voltage: 12 / 24 V
• Number of light functions: 4
• Light Function: with indicator (LED) / with licence plate light (LED) / with position light (LED) / with stop light (LED)
• Lens Colour: transparent
• Lamp Type: LED
• Fastening Type: for horizontal fastening / for vertical fastening
• Power Consumption: 5 W
• Cable Length: 6000 mm
• Reverse polarity protection: Yes
• Lens Material: Polyamid 12
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Registration Type: ADR/GGVS approved
• Width: 96 mm
• Height: 80 mm
• Thickness: 24 mm
• Quantity Unit: Kit

with reflector Assy./disassy. by qualified personnel required!
