Hella 2377-TP DuraLED Submersible Rear Combination Trailer Lamp Lightning Kit

Hella 2377-TP DuraLED Submersible Rear Combination Trailer Lamp Lightning Kit

2377 DuraLED Submersible Rear Combination Lamp Kit

Series: 2377 Trailer

Advanced Hella marine LED trailer lamps are the highly visible, maintenance free solution for reliable and safe boat trailer lighting.

Designed and manufactured in New Zealand, every product is a completely sealed, maintenance free unit. They are also proven shock, vibration, UV and corrosion resistant and represent true ‘fit and forget’ technology.

Sophisticaled internal electonics reduce the effect of voltage drop, ensuring ongoing safety. This means Hella LED lamps perform at full brightness across a range of voltages unaffected by voltage drop that can dull bulb lamps due to long cable runs, joins, terminals and plugs in a boat trailer’s wiring.

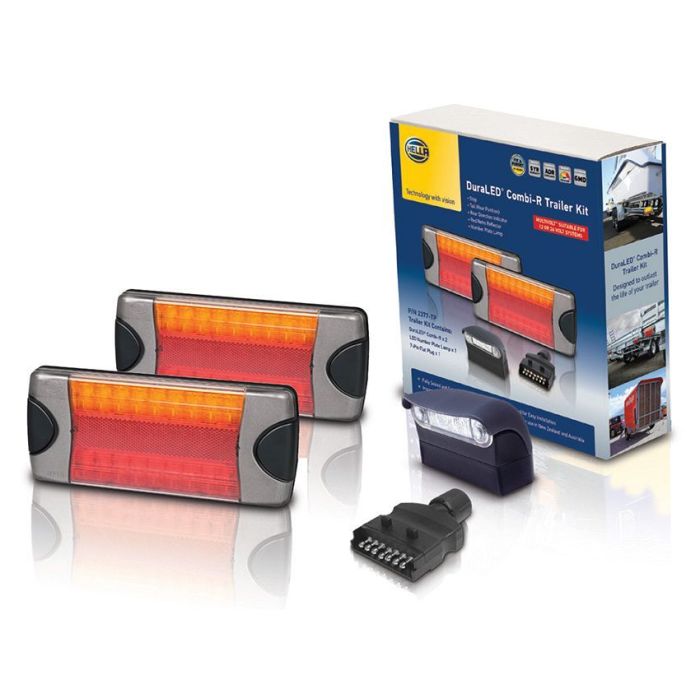

Kit Contains:

2 x  2377    Combination Lamps with integrated reflectors
1 x  2559    Number Plate Lamp
1 x  4921    7 Pole Flat Trailer Plug

Rearlight - DuraLED Combi-R - LED - 24/12V - mounting/Bolted - ECE/ADR/GGVS - Lens Colour: transparent - Cable: 6000/5000mm - Plug: open cable ends/Male - 7-pin connector - left/right - Kit

Features

• Length: 222mm - Width: 96mm - Height: 25mm - Lamp Type: LED - for CV trailers/for PC trailers
• Light functions: 5 - with taillight (LED)/with stop light (LED)/with indicator (LED)/with reflector/with number plate light (LED)
• Registration Type: ECE/ADR/GGVS - Prot.type (IP Code): IP6K7/IP6K9K
• Housing Colour: grey/black - Diffusing Lens Material: Nylon - Lens Colour: transparent
• Mounting Type: mounting/Bolted - Fastening Type: for horizontal fastening

Specifications

• Part number: 2377-TP
• Hella number: 2VA 980 710-811
• Barcode (EAN): 9416325229032
• Brand: Hella
• Mounting Type: Bolted / mounting
• Fastening Type: for horizontal fastening
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Fitting Position: Left / Right
• Height: 25 mm
• Width: 96 mm
• Length: 222 mm
• Light Function: with indicator (LED)
• Power Consumption: 9 W
• Number of light functions: 5
• Cable Length: 5000 mm
• Plug Type: Male
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Registration Type: ADR/GGVS approved / ECE approved
• Housing Colour: grey/black
• Lens Colour: transparent
• Lens Material: Nylon
• Reverse polarity protection: Yes
• Number of pins: 7
• Quantity Unit: Kit
• Packaging: Box
• Product line: DuraLED

for CV trailers; for PC trailers Assy./disassy. by qualified personnel required!
