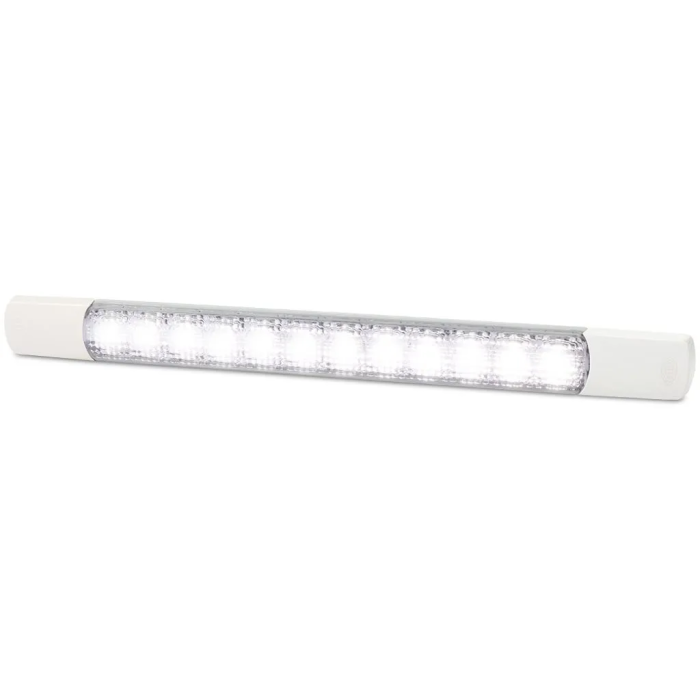

Hella 98087900 LED Interior/Exterior Surface Mount Awning Lamp 15° Spread -12V (White)

Hella 98087900 LED Interior/Exterior Surface Mount Awning Lamp 15° Spread -12V (White)

Hella LED Interior/ Exterior Awning 12V Strip Lamp Surface Mount

Mounting : Mounting Two hole surface mount.

Power Consumption <3W

Protection

 Reverse polarity protection.

IP 6K7 (Protection against dust and temporary water immersion)

IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length Pre-wired with 2.5m of twin core cable.

Lens Material Grilamid®

Spare Parts

• 8HG 958 000-021 Mounting bracket 45° - Charcoal
• 8HG 958 000-011 Mounting bracket 45° - White

Interior Light - LED - 12/24V - 3W - 5000K - Screw Connection/mounting - Lens Colour: Crystal clear - Interior/outer

Features

• Length: 283mm - Height: 25mm - Depth: 11mm
• Housing Colour: White - Light functions: 1 - Torch - Lamp Type: LED
• Prot.type (IP Code): IP6K9K/IP6K7
• Cable: 2500mm - Number of LEDs: 10

Specifications

• Part number: 98087900
• Hella number: 2JA 980 879-001
• Barcode (EAN): 9416325232803
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Fitting Position: Interior / outer
• Length: 283 mm
• Height: 25 mm
• Depth: 11 mm
• Light Function: Torch
• Number of light functions: 1
• Protection Type per ISO 20653: IP6K7 / IP6K9K
• Colour Temperature: 5000 K
• Number of LEDs: 10
• Housing Colour: white
• Lens Colour: Crystal clear
• Cable Length: 2500 mm
• Current Strength: 0.25 A
• Power Consumption: 3 W

Assy./disassy. by qualified personnel required!
